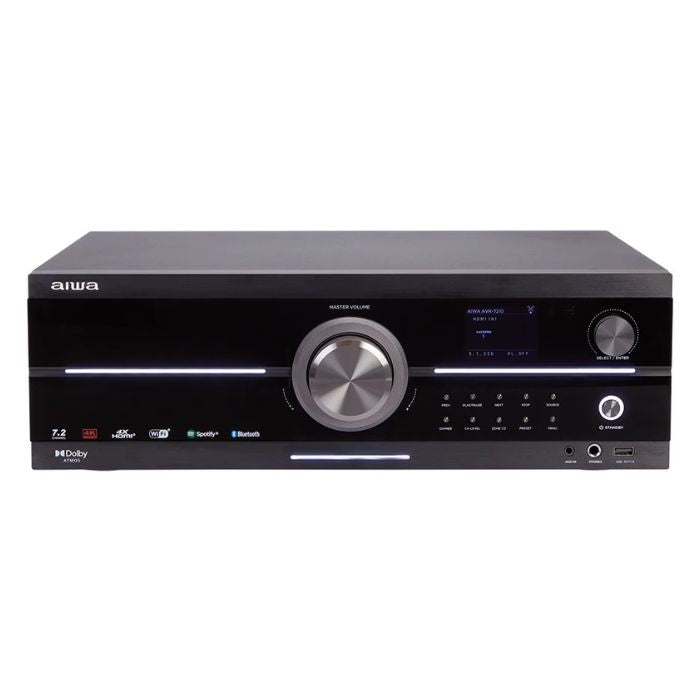

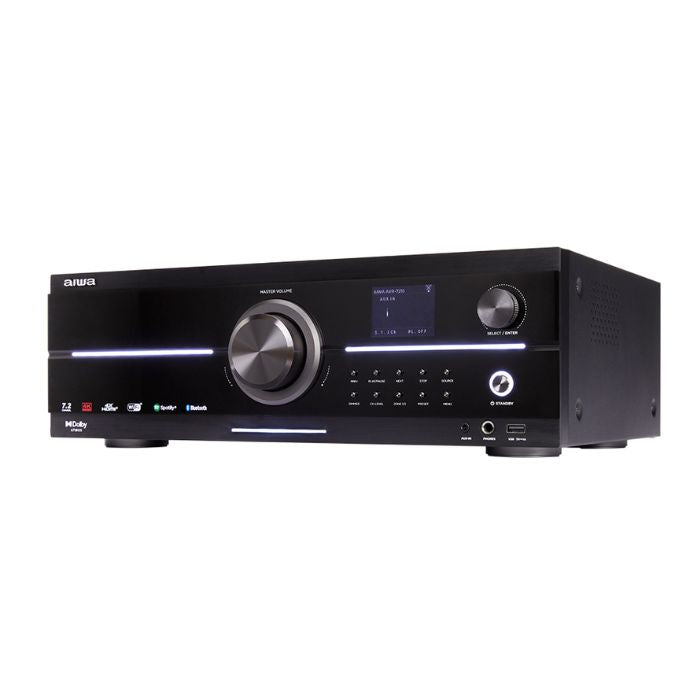

7.2 Channel Audio Video Receiver

Upgrade your home theater with this 7.2 Channel Audio Video Receiver featuring a built-in amplifier. Delivering 180W per channel at 4 Ohms, it ensures powerful and clear sound. Compatible with Apple AirPlay 2, Dolby Atmos, and Wi-Fi, it supports UHD 4K pass-through and Bluetooth streaming. With multiple inputs and outputs, including HDMI, Optical, and USB, it offers versatile connectivity. The sleek design includes a 2.4″ TFT display with dimmer function and plated banana & screw speaker terminals. Perfect for any audio enthusiast, this receiver combines high performance with modern features.

General Specifications

7.2CH Audio Video Receiver with Built-in Amplifier

Channels: 7.2 CH (Sub: Pre-out)

Power Output:

• 180W per channel @ 4Ω, 1kHz, 1% THD (2-channel driven)

• 130W per channel @ 6Ω, 1kHz, 1% THD (2-channel driven)

• 110W per channel @ 8Ω, 1kHz, 1% THD (2-channel driven)

• Total RMS Power Output: 130W × 7 = 910W @ 6Ω

• DRC (Dynamic Range Compression) adjustable in settings

Audio & Compatibility:

• Dolby Atmos supported

• Compatible with Apple AirPlay 2

• Bluetooth 5.2 streaming

• Wi-Fi with Spotify (Frontier Auria solution)

• FM (75Ω) tuner with 30 presets

Video & Display:

• UHD 4K/60Hz HDR pass-through via HDMI

• HDMI eARC & CEC support

• HDCP 2.2 or above

• 2.4” TFT display with dimmer function

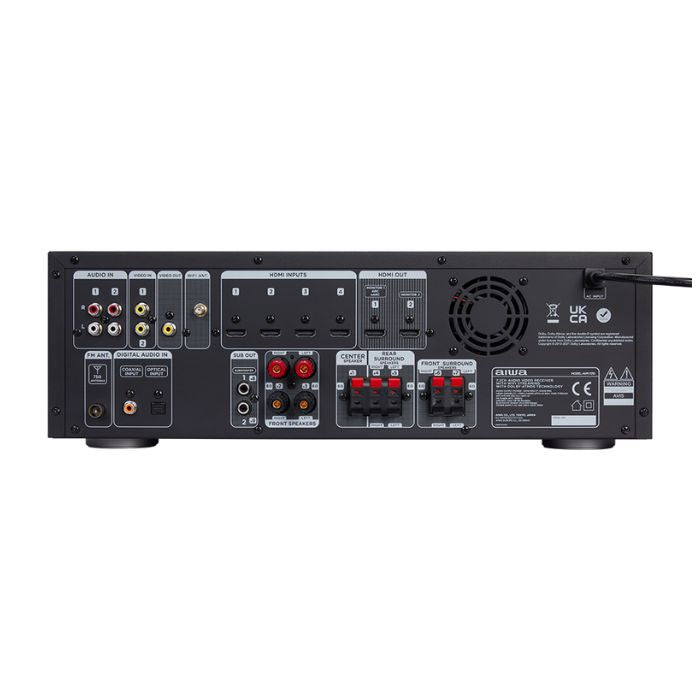

Inputs:

• 4 × HDMI In

• 1 × Optical In

• 1 × Coaxial In

• 2 × Composite In (Video)

• 2 × RCA In

• Line In

• USB (MP3 Playback)

Outputs:

• 2 × HDMI Out with eARC

• 1 × Composite Out (Video)

• 1 × 6.5mm Earphone Jack

• 2 × Subwoofer Pre-Out

Speaker Terminals: Plated banana & screw type

Power Supply: 200V – 240V
